Sertifikasi CE Sistem Uji Getaran Elektromagnetik Sine Random Shock
Sistem Uji Getaran Elektromagnetik Sine Random Shock:MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS dll.
Sistem Uji Getaran Elektromagnetik Sine Random Shock:otomotif, elektronik, dirgantara, kapal, telekomunikasi, optoelektronik, instrumen dll.
Parameter Pengocok Uji Getaran:
| Model |
Nilai Sinus Kekuatan (N) |
Dinilai Acak Kekuatan (N) |
Frekuensi Rentang (Hz) |
Akselerasi Terukur (m/s2) | Kecepatan Terukur (m/s) |
Nilai perpindahan (hal) mm |
Maks. Memuat (Kg) | kumparan bergerak (Kg) |
Dimensi Kumparan bergerak (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10.000 | 10.000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20.000 | 20.000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100.000 | 100.000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Sistem Uji Getaran Elektromagnetik Sine Random Shock Fitur produk

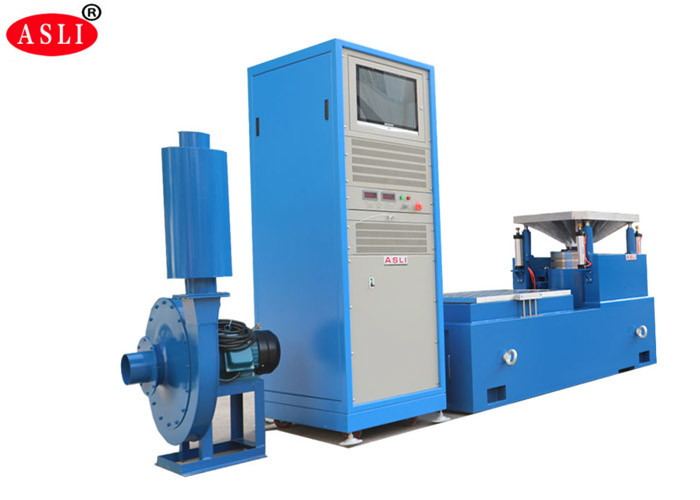

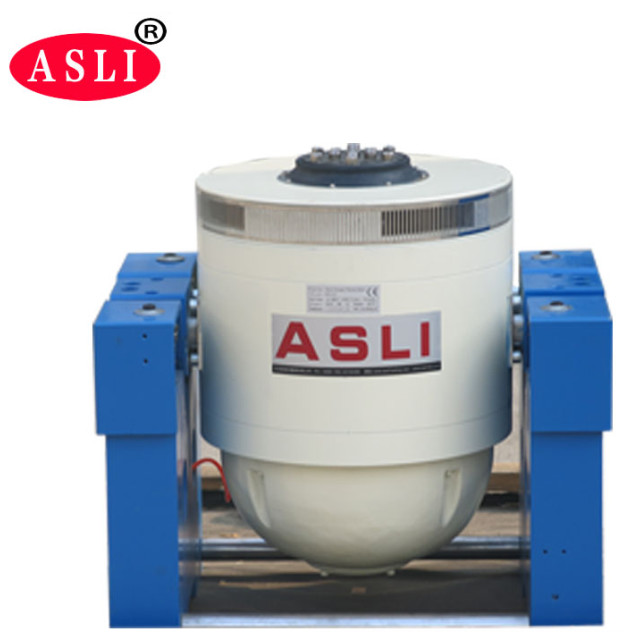

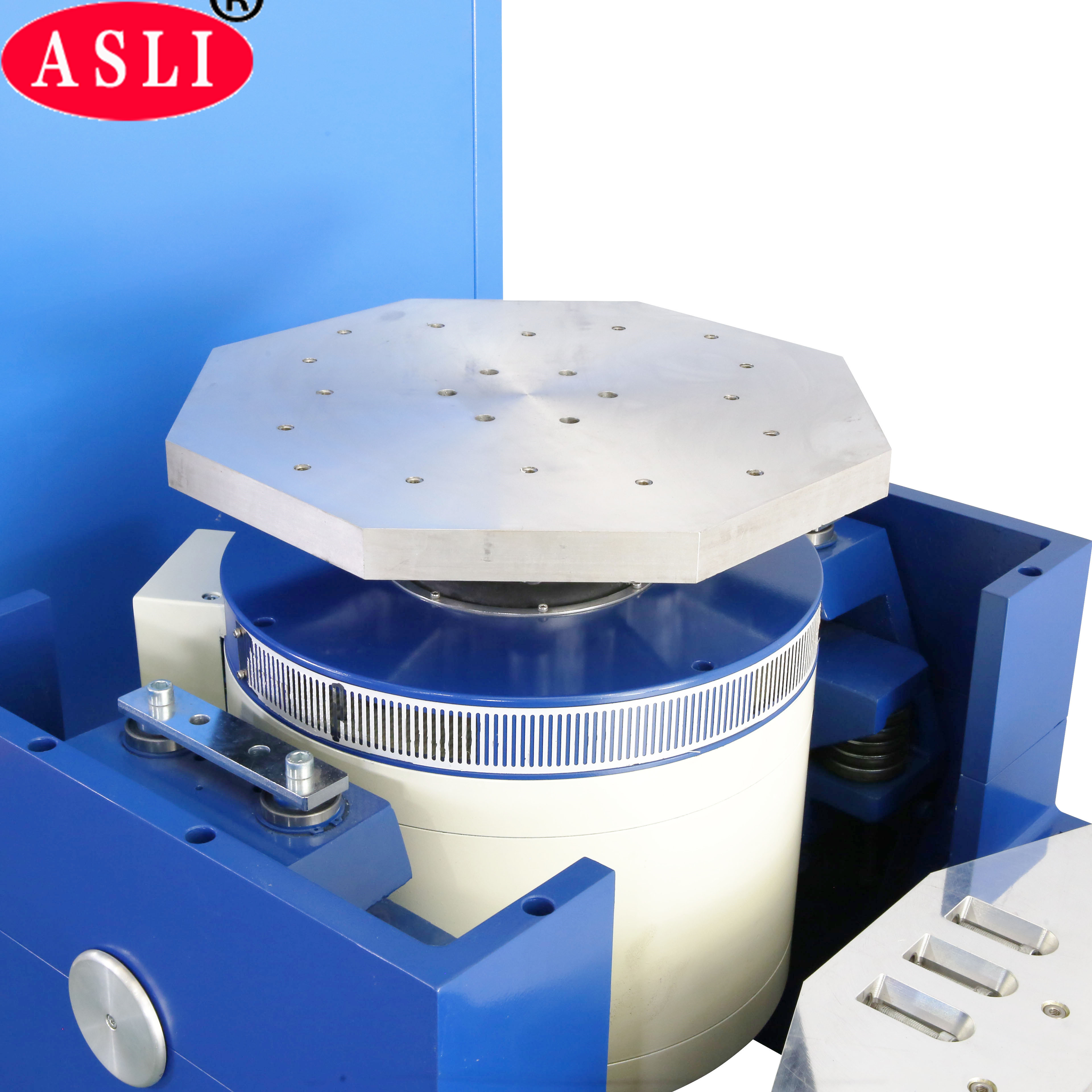

Gambar untuk referensi:

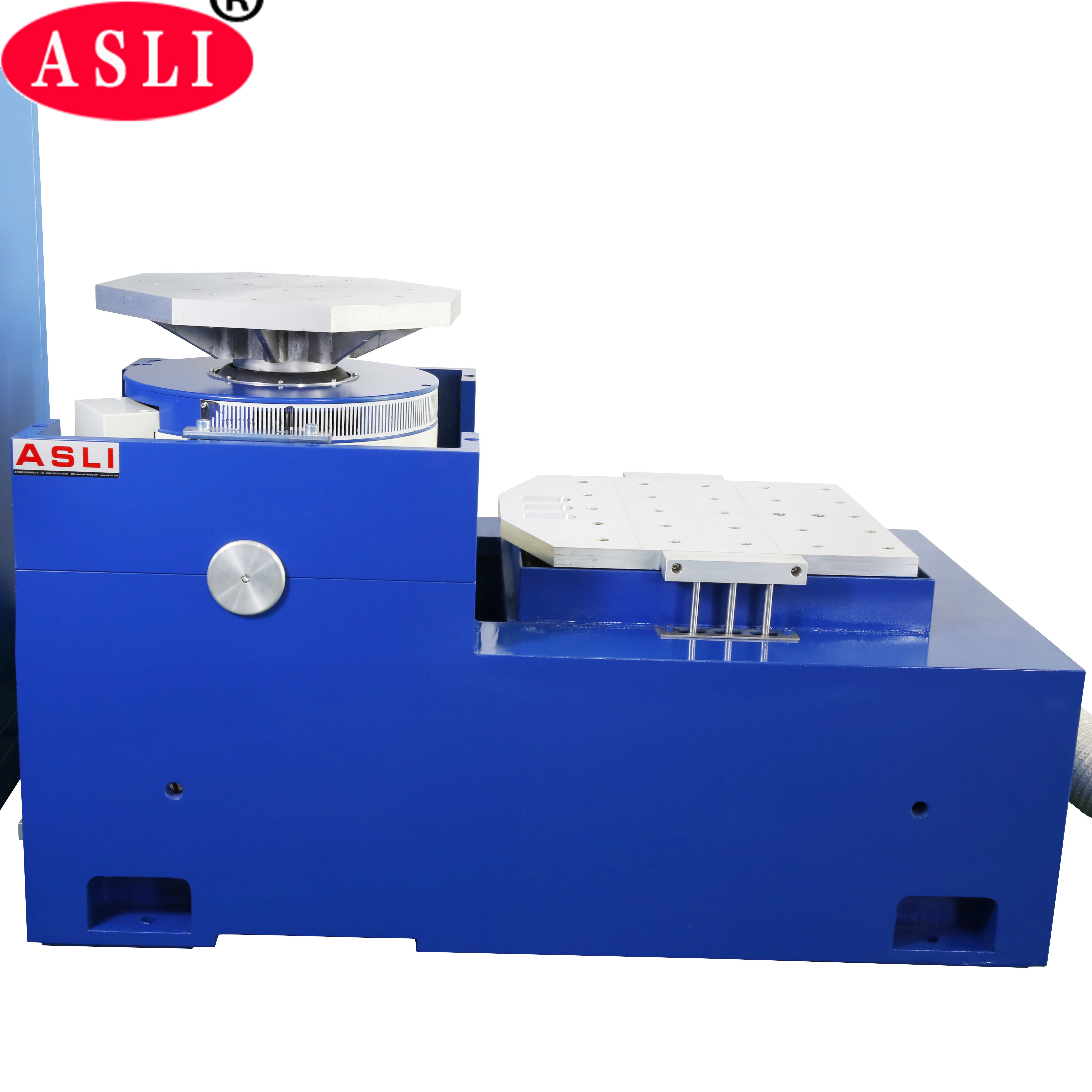

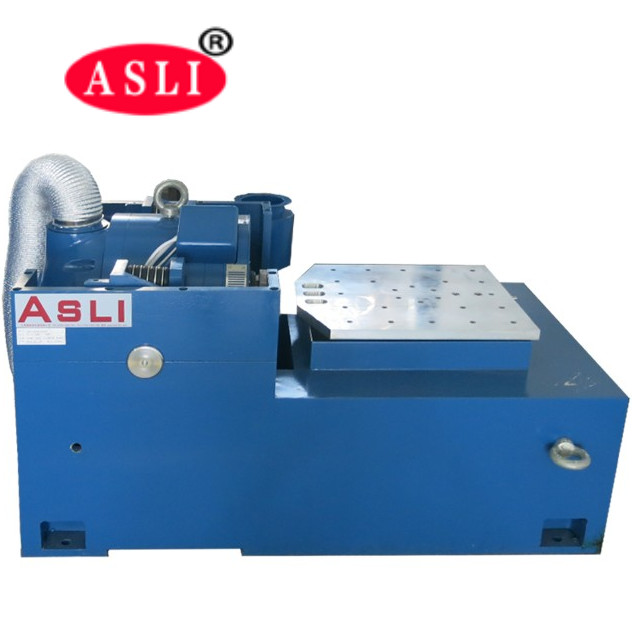

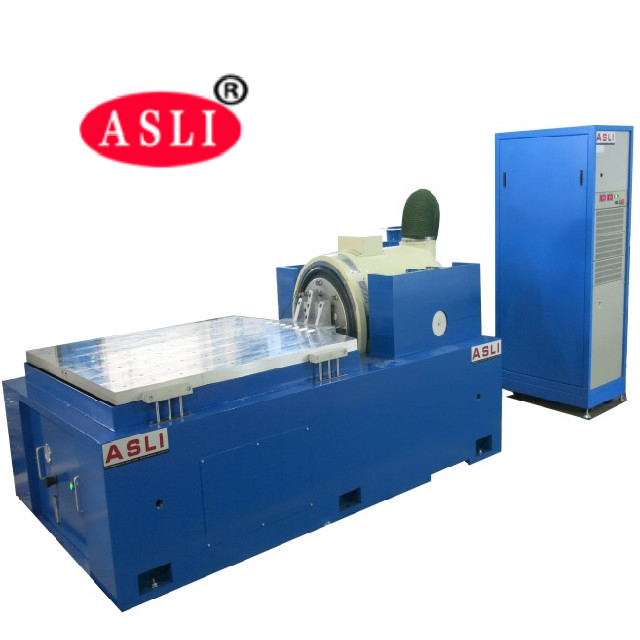

Tabel Ekspander Horisontal:
Sertifikat:
