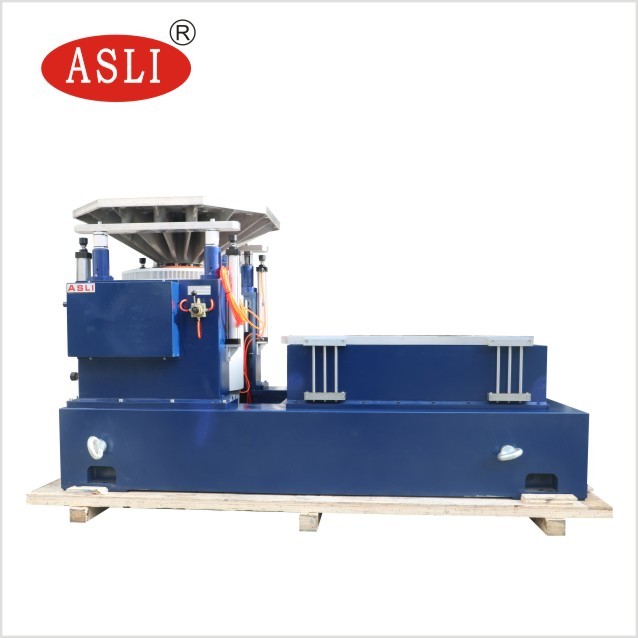

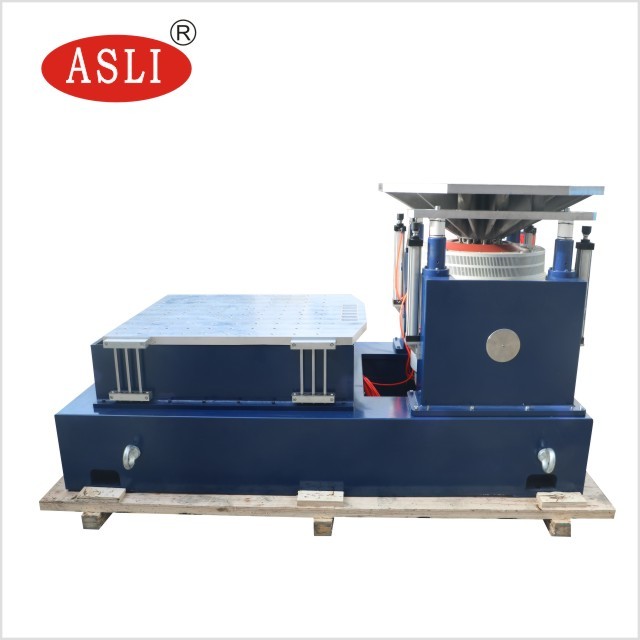

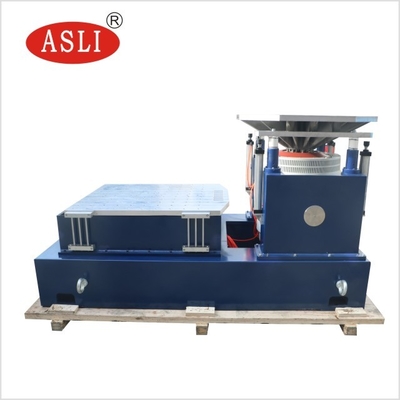

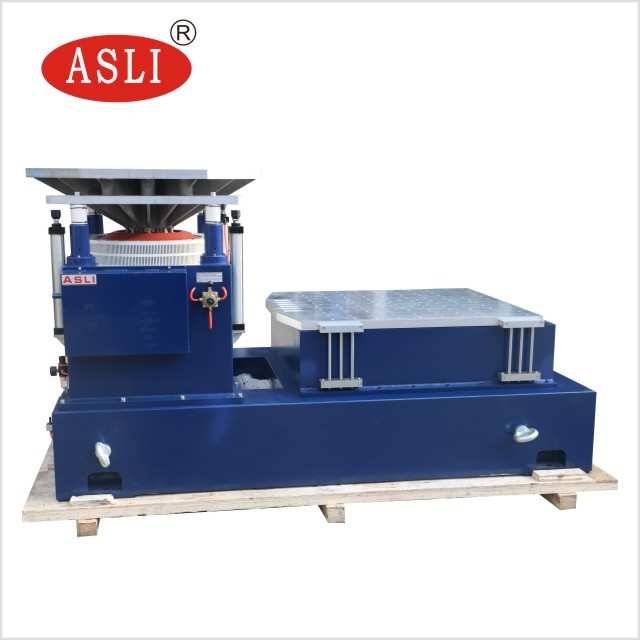

Produsen di Cina Vibration Shaker Table Machine, Electrodynamic Shaker Shaker table vibration machine Instrumen

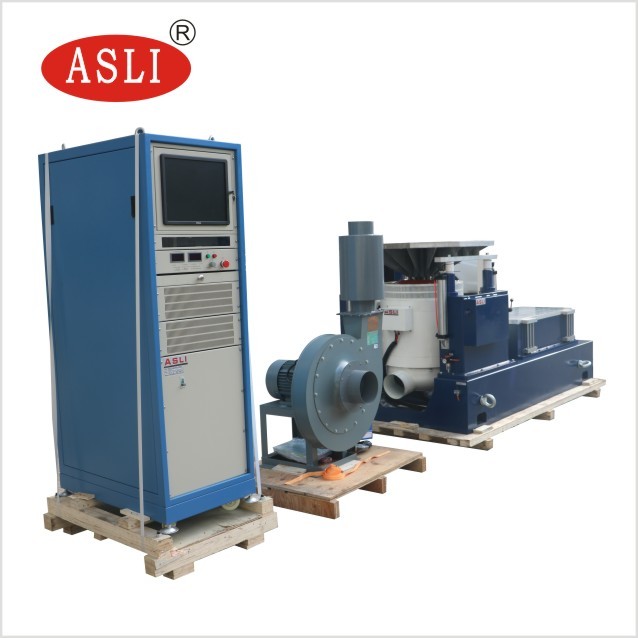

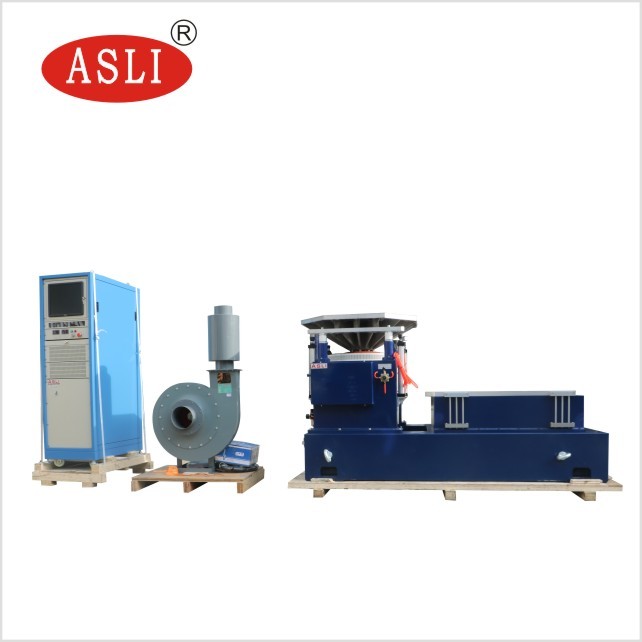

Komposisi sistem uji
1Generator getaran horizontal satu bagian
2Tabel ekspansi vertikal
3. kipas pendingin dengan muffler
4Amplifier daya digital
5Instrumen pengukuran kontrol getaran multi-fungsi.
Spesifikasi
| Nama | Produsen di Cina Vibration Shaker Table Machine, Electrodynamic Shaker Shaker table vibration machine Instrumen | ||||||||
| Model | Kekuatan sinus nominal (N) | Kekuatan acak (N) | Jangkauan frekuensi (Hz) | Percepatan nominal (m/s2) | Kecepatan nominal ((m/s) | Pergeseran nominal (p-p) mm | Maks. Pemuatan (Kg) | Koil bergerak (Kg) | Dimensi Koil Bergerak (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5 l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
