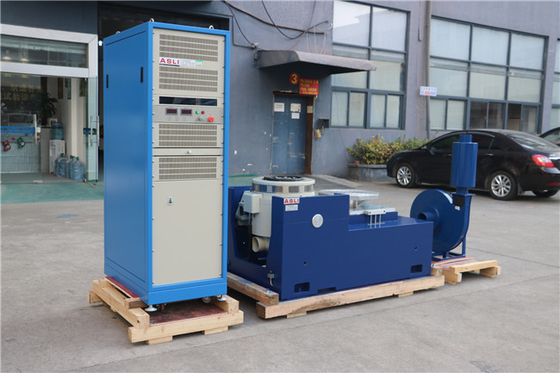

Mesin Uji Getaran baterai UN38.3 Mesin Uji Lab Meja Getaran 3 Sumbu
Parameter teknis expander horizontal:
parameter teknis expander vertikal:
| Model |
Nilai Sinus Memaksa(N) |
Dinilai Acak Memaksa(N) |
Frekuensi Rentang (Hz) |
Akselerasi Terukur (m/s2) | Kecepatan Terukur (m/s) |
Dinilaidispenempatan (hal) mm |
Maks. Memuat (Kg) | kumparan bergerak (Kg) |
Dimensi Kumparan bergerak (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10.000 | 10.000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20.000 | 20.000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100.000 | 100.000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
Kemasan: Film PP terlebih dahulu, lalu busa 10mm antara mesin dan casing, dan di luarnya adalah casing kayu lapis standar ekspor.
