This advanced testing system combines temperature, humidity, and vibration capabilities in a single unit, designed for comprehensive environmental stress screening of products and materials.

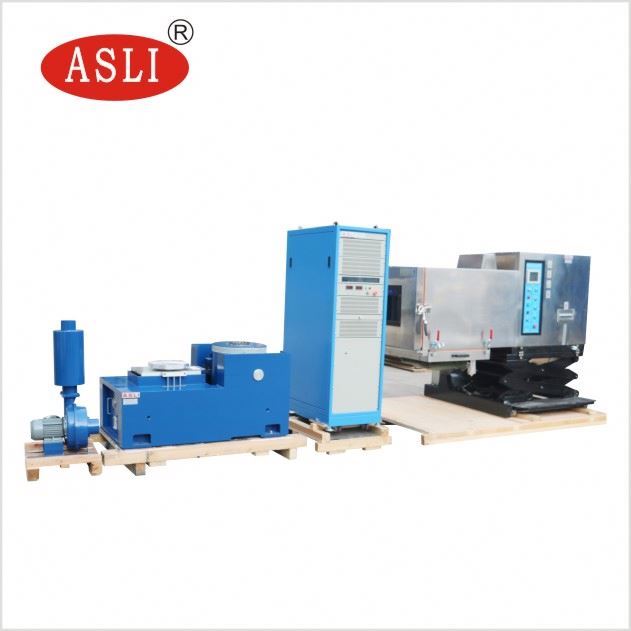

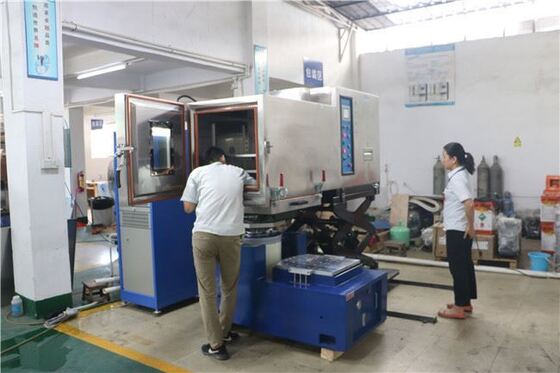

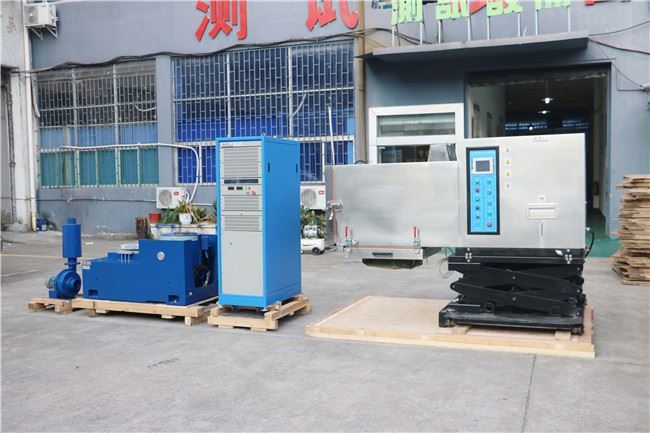

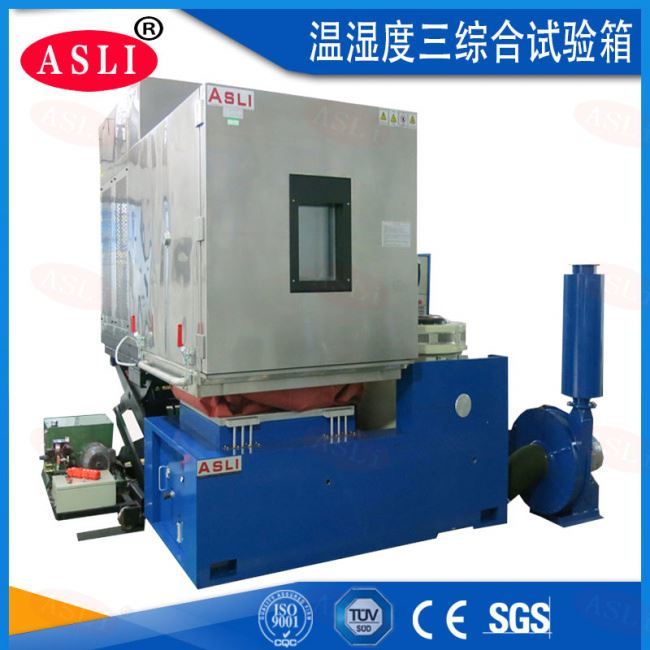

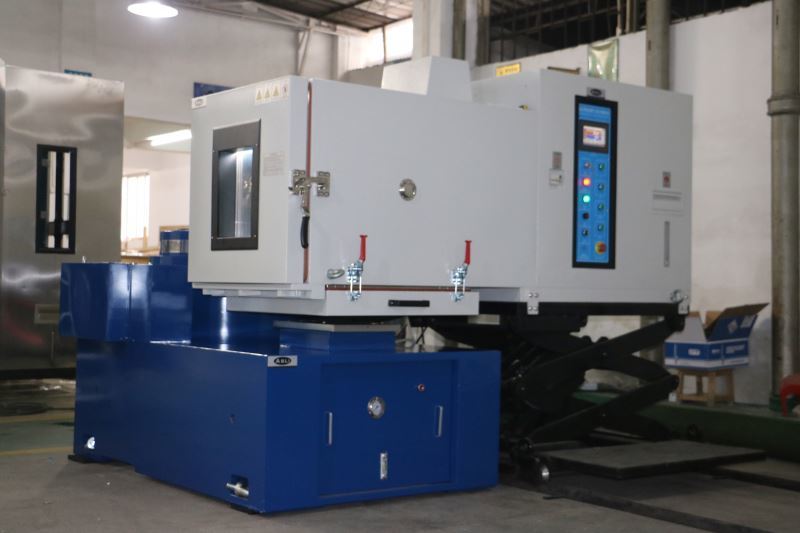

The Temperature Humidity Vibration Machine provides controlled environmental conditions for scientific research and industrial applications in aerospace, aviation, petroleum, chemical, electronics, and communication sectors. It enables comprehensive stress screening tests combining temperature, humidity, and vibration factors to evaluate product performance and reliability under simulated real-world conditions.
| Model | THV-512(A~F) | THV-1000(A~F) | THV-1500(A~F) |
|---|---|---|---|
| Internal Dimension W×H×D (mm) | 800×800×800 | 1000×1000×1000 | 1500×1500×1500 |
| External Dimension W×H×D (mm) | 1050×1950×2100 | 1300×2200×2400 | 1800×2400×3000 |
| Temperature Range | Low temperature: (A:25°C; B:0°C; C:-20°C; D:-40°C; E:-60°C; F:-70°C) High temperature: 100°C (150°C) | ||
| Humidity Range | 20%~98% R.H. (10%-98% R.H./5%-98% R.H. optional with dehumidifier) | ||
| Control Accuracy | ±0.5°C; ±2.5% R.H. | ||
| Temperature Change Rate | Rising: 0.1~3.0°C/min | Falling: 0.3~1.0°C/min (Optional: Min.1.5°C/min) | ||
| Protection Devices | Fuse-free switch, compressor protection, coolant protection, over-humidity/temperature protection, fault warning system, water storage protection | ||
| Model | ES-3 | ES-3a | ES-6 | ES-6a | ES-10 | ES-20 | ES-30 | ES-40 | ES-50 |
|---|---|---|---|---|---|---|---|---|---|
| Rated Sine Force (N) | 3000 | 3000 | 6000 | 6000 | 10000 | 20000 | 30000 | 40000 | 50000 |
| Rated Random Force (N) | 3000 | 3000 | 6000 | 6000 | 10000 | 20000 | 30000 | 40000 | 50000 |
| Frequency Range (Hz) | 3-3500 | 3-3500 | 3-3500 | 3-3500 | 3-3000 | 3-3000 | 3-2800 | 3-2800 | 3-2700 |
| Rated Acceleration (m/s²) | 1.6 | 1.6 | 1.6 | 1.6 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Max. Loading (Kg) | 3.5 | 9 | 6.5 | 12 | 14 | 30 | 40 | 50 | 50 |
With 28 years of experience in testing equipment manufacturing, we specialize in environmental simulation and mechanical vibration testing systems. Our Temperature Humidity Vibration Machine with JIS D1601 Standard is a flagship product, certified to CE standards for quality and safety.
For more information about our Temperature Humidity Vibration Machine With JIS D1601 Standard, please contact us for detailed specifications and quotations.
